HF Loop Antenna For Amateur Radio Or Shortwave Receiver APARTMENT & HOA FRIENDLY

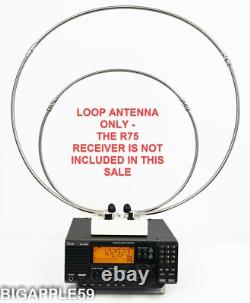

Please note that the receiver pictured in the listing is for display purposes and is NOT included in this sale. This sale is for an HF magnetic loop antenna that should be attractive to anyone living in an apartment, residence, or other location where it is not possible to erect an outside dipole antenna. If you can erect an outside antenna, this is always the best solution for reception as no inside antenna can compete with a good outside antenna for the very best signal gathering reception. But erecting an outside antenna is not always possible for many people desiring to listen to amateur radio or shortwave signals. Thus, this antenna offers a solution to such hobbyists handicapped by personal physical limitations to mount an outside antenna, minimal yard space to erect such an antenna, apartment living, or HOA restrictions.
This antenna spans a tuning range spanning 150 KHz through 500 MHz, but reception via tuning is optimal between 2.8 - 37.5 MHz via the tuning capacitor mechanism. For optimized reception, this antenna thus covers 80 - 10 meters on the amateur radio bands, all international shortwave bands plus the 11 meter CB bands. The antenna comes with an 18 coaxial cable to attach the antenna BNC output to a SO-259/PL-259 input of your receiver (most receivers). The antenna can be switched to "Wide" which bypasses the capacitor tuning and enables non-resonant antenna matching. Such reception will work to a degree, but be less than optimal as a non-resonant antenna covering down to 150 KHz and up to 500 MHz.

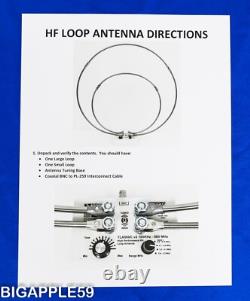

Amateur radio operators transmit at 1,000 watts PEP (or much less as may use 100 watts or lower) and so picking up these weaker signals will only be possible if the transmitters are within the region, are using higher power, or if atmospheric reception is good for that particular day. Simple assembly directions are also included and you may be view this information in the last picture at the top of this listing. Assembly takes 5-10 minutes using only your fingers and the antenna can be disassembled to transport to a remote DX location or for convenience in your travel luggage..... Or as our picture shows, located permanently at your home listening room or bedside. Depending upon your preference and the dimensions of your receiver, the antenna can be set on top of or next to your receiver (see picture at the top of this listing) during operation. Please remember that this is a "receive only" antenna and cannot be used to transmit signals. Works on wide variety of communications receivers both stationary or portable. Light weight aluminum construction weighs about 1 lb with the interconnect cable. Portable - can be disassembled and folded into a low stature for compact transport. Sharp tuning helps filter strong non-desired out-of-band signals.Low noise loop design helps filter RF noise often found inside a home or apartment from lighting or appliances. Tuning range of 2.8 MHz - 37.5 MHz optimal or down to 150 KHz or up to 500 MHz sub-optimal (non-resonant tuning).
Small loop antenna assembles to 18 diameter at the broadest point. Great alternative for signal reception when an outside antenna is not possible. Very easy set up and connection. As you can imagine, this is a perfect solution for your HOA restrictions, apartment limitations or travel needs when you desire to hear those shortwave signals with your portable or desktop receiver such as. Or most other desktop communications receivers (please confirm the receiver antenna input is SO-259).
If you have a handheld portable, you can also use this antenna, but will be required to obtain the correct coaxial interconnect cable. This antenna can greatly improve reception on the HF bands of these handhelds.
You can see the V1 antenna in operation on the amateur radio bands (in Europe) in this video.
