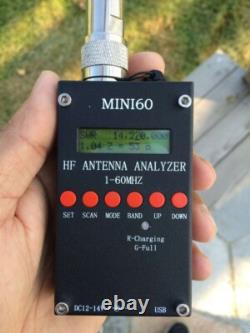

Mini60 Sark100 1-60MHz HF ANT SWR Antenna Analyzer Meter + Bluetooth + APP

Mini60 Sark100 1-60MHz HF ANT SWR Antenna Analyzer Meter + Bluetooth + APP. This is an antenna analyzer for ham radio hobbyists.

It can measure 50 ohms source impedance. It is also a meter for magnetic loop resonance, standing wave ratio, impedance.. Frequency generation & control: 1-60MHz. External power supply: 2.1mm power jack(center pin positive). 6 operation buttons, easy and convenient to operate. Installed black metal case, just connect the power(not included) and then work.

Step size: user configurable increments of 100Hz, 1KHz, 10KHz, and 100KHz. Support measuring data waveform analysis via connecting computer with USB cable. Manual control option displays SWR and complex impedance at selected frequencies. Automatic scanning results displayed as frequencies of lowest SWR and complex impedance.

Battery operated for field use or use external 13.8V wall adapter. Multi-point calibration for better accuracy. Measure antenna electrical parameters: SWR, impedance(resistance+reactance), capacitance, inductance. Adjust antenna tuners and determine loss.

Measure coax transmission line(SWR, length, velocity factor, approximate Q and loss, resonant frequency, and impedance). Measure and determine optimum settings for tuning stubs: SWR, approximate Q, resonant frequency, bandwidth, impedance. Determine characteristic impedance of transmission line. Determine length of ¼ and ½ wave phasing lines. Measure magnetic loop resonance and SWR.

Frequency Generation & Control: 1-60MHz. Spectral Purity: Harmonics Down >- TBD dB beyond 60MHz. Step Size: User configurable increments of 100Hz, 1KHz, 10KHz, and 100KHz. Usable Measurement Range: SWR: 1.0 to 9.99. RF Output: Adjustable: 2.0 Volts pp (typ).

Power Supply(3.7V Li-on Battery NOT Included): Powered by External: DC 12-14V, 500mA. External Power: 2.1mm Power Jack(center pin positive). USB Interface: Mini USB Receptacle. Item Size: 10 5.2 2.8cm / 3.94 2.05 1.1in. Item Weight: 200g / 7.05oz. Package Size: Ordinary Version: 11.5 7 7cm; BT Version: 12 9 7cm. Package Weight: 240-252g / 8.47-8.92oz. 1 mini60s Antenna Analyzer(with bluetooth and battery). Please make sure it is correct.

We believe our items are so outstanding. All products are quality checked. We will be happy to resolve any issues you may have in a cordial and friendly manner.

We appreciate your Postive Feedback, and will do the same in return.
