BALAERICS, CANARIES, COUNTRIES NOT CLASSED AS AMERICAN MAINLAND, EXTREMELY REMOTE AREAS ETC. SE-HF 360 XP 160m to 6m Top Band Fibre Glass High Power 1kW Vertical antenna. The Sigma Euro-Comm Ltd HF360 is an end fed vertical antenna, capable of allowing the user to work 160 meters through to 10 meters using an ATU found in most modern radios & 6 meter with the use of an external ATU. The antenna can be pole mounted at ground level or elevated depending on the user's personal requirements. The antenna is rated at 1kW pep.

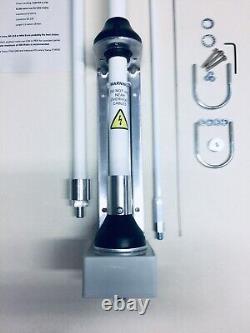

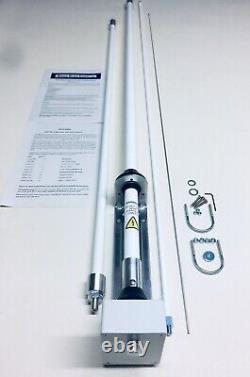

The antenna comes with fixings and installation guide. How it works: The antenna is fed using 50 Ohm coax via a SO-239 socket at the base of the unit a 4:1 UNUN transformer is located in an IP65 weather sealed box at the bottom of the bracket section of the fibre glass elements. The antenna comes in four parts, three fibreglass poles and one stainless steel tapered whip.
The transformer reduces the impedance at the feed point to a more acceptable level making the antenna much more efficient and allowing proper and easy tuning via an external ATU and automatic ATU's found in most modern radios. The antenna can be grounded if the user experiences excessive local static noise, but as the UNUN is DC grounded: grounding will not affect the tuning ratios.
1.8 MHz 1.3. 3.5 MHz 80m 1.0.5 MHz 60m 1.1. 7 MHz 40m 1.1. 10 MHz 30m 1.2. Frequency TX / 1.8 - 52 MHz.
14 MHz 20m 1.0. RX / 1.8 - 55 MHz. 18 MHz 17m 1.0. 1 kW PEP or CW.
21 MHz 15m 1.0. & 200 watts max for data modes. 24 MHz 12m 1.0. 28 MHz 10m 1.0. 29 MHz 10m 1.0.
Length 5.5 meters 18 feet. 50 MHz 6m 1.3. Please use a good quality 50 Ohm coax, RG-213 or Mini 8 are probably the best choice. If you are using a high-power amplifier it is essential that an external ATU is used between the antenna and the amplifier, otherwise damage may occur.
From humble beginnings making TV antennas in the garage, Terry spotted a gap in the CB market with most kit imported from America. During the'80s the market really took off and Paul joined his father, moving to their first premises and creating Sigma Euro-Comm Limited. Through listening to our customers requirements, we're constantly looking at how we can improve and innovate our CB offerings and now boast one of the most extensive range of CB antennas, supplying to both end customers and trade partners across the globe. Despite our growth, all our products are still made right here in our factory in the heart of Birmingham.... Just a much bigger site to the one we had back in 1990!
These are some of the most common questions we get asked by our customers. How do I protect my antenna from the elements? We always recommend protecting any exposed areas of your antennas, such as the UNUN box, with tape or another waterproof material. The sea air and extreme cold will over time have a detrimental affect on exposed areas.
Do I need an ATU for my antenna? Many of our antennas will perform much better with the use of an ATU. We do have antennas that will need an ATU such as the X-80, HF-360 and HF-360XP. How do I mount my antenna?Vertical Antennas: Work best when mounted on a short metal pole at ground level. You can mount 10 - 20 feet up but the higher you mount, the further away the antenna moves from it's natural earth. CB Mobile Antennas: Our Stinger antennas will require a mount depending on how you wish to mount it. All items prior to despatch will be thoroughly inspected and a return will only be accepted if the item is received in the same condition.
