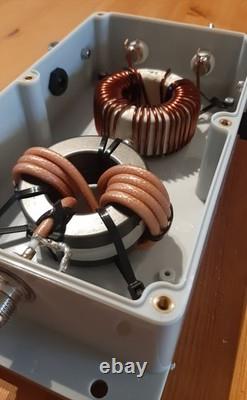

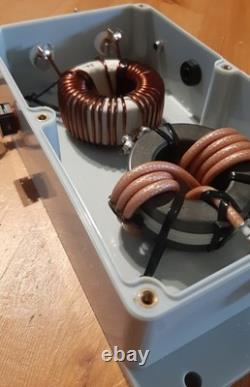

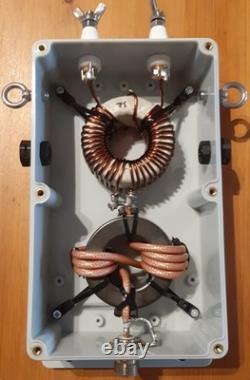

Worldwide unique design : High-efficiency 4:1 balun + RF choke in the same package. From 160 up to 10m. ==> Get the best and unique worldwide combo 4:1 + RF choke for your multiband loop or log yagi!!!!!!!!!! ==> Total of 4x FT240 toroids used, always compare with other solutions how many they use! Efficiency measured > 97,7% from 160 up to 10m.

Genuine 2x FT240-52 from Fair-rite (High Curie point 250°c). Toroid stack protected by double-layer of fiberglass tape for better heat protection. Output on ceramic insulator + M6 stainless steel A4-grade screw.

High-end 1,8mm enameled copper wire, double-coated, 210°c and > 10Kv insulation (spec IEC 60317-13). Genuine 2xFT240 toroids from Fair-Rite. RG142 double shielded coaxial cable.

Covers from 160 up to 10m with > 33dB of common mode rejection, with Rs>Xs and losses. Never trust people saying that 1 single toroid can support 2KW!!!! 20x12cm waterproof ABS box with predrilled holes for easy mounting. SO239 for 50 Ohm input. 3x Stainless steel A4-grade eyebolts on each side and top for easy mounting. 1x big vent valve included, to avoid condensation and cool down the core. Made in France, by a ham, for hams! Message me or check my other items.
