Unique combo 41 balun + RF choke 3KW++ 160 10m

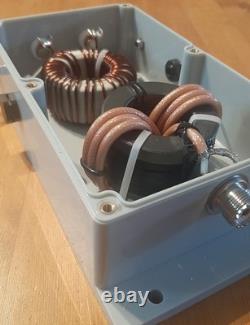

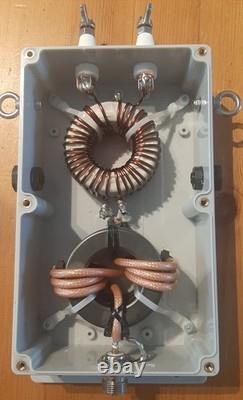

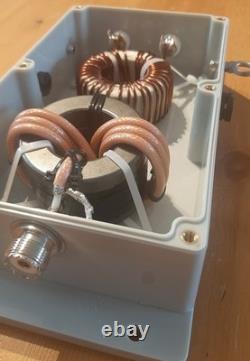

Worldwide unique design : High-efficiency 4:1 balun + RF choke in the same package. From 160 up to 10m. ==> Get the best and unique worldwide combo 4:1 + RF choke for your multiband loop!!!!!!!!!! ==> Total of 6x FT240 toroids used, always compare with other solutions how many they use!

Efficiency measured > 98,8% from 160 up to 10m. Genuine 2x FT240-61 from Fair-rite (High Curie point 300°c), protected with fibreglass double taping. Toroid stack protected by double-layer of fiberglass tape for better heat protection. Output on ceramic insulator + M6 stainless steel A4-grade screw. High-end 1,8mm enameled copper wire, double-coated, 210°c and > 10Kv insulation (spec IEC 60317-13).

Genuine 3xFT240 toroids from Fair-Rite. RG142 double shielded coaxial cable. Covers from 160 up to 10m with > 33dB of common mode rejection, with Rs>Xs and losses.

Never trust people saying that 1 single toroid can support 2KW!!!! 20x12cm waterproof ABS box with predrilled holes for easy mounting.

SO239 for 50 Ohm input. 3x Stainless steel A4-grade eyebolts on each side + on top for easy mounting. 2x big vent valve included, to avoid condensation and cool down the core. Made in France, by a ham, for hams!

Any questions, message me or check my others items.

---
