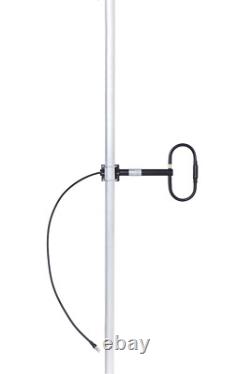

WIDE BAND UHF Antenna Folded Dipole adjustable diagram 400-470 MHz 3 DBd

WIDE BAND UHF Antenna Folded Dipole adjustable diagram 400-470 MHz 3 DBd
WIDE BAND UHF Antenna Folded Dipole adjustable diagram 400-470 MHz 3 DBd
WIDE BAND UHF Antenna Folded Dipole adjustable diagram 400-470 MHz 3 DBd
WIDE BAND UHF Antenna Folded Dipole adjustable diagram 400-470 MHz 3 DBd

WIDE BAND UHF Antenna Folded Dipole adjustable diagram 400-470 MHz 3 DBd
DA-4501 is a single dipole wide band UHF antenna for professional radio systems. Dipole incorporates 1/4 wave coax line matching circuit optimized for wide bandwidth and accurate matching. All connections made by soldering and. Have 2 layers of sealing. All antenna parts are made of aluminum. All components of dipole elements are DC grounded for better lighting and anti-static protection. Frequency range, MHz 360 - 520.

Overall dimensions, cm 31\ 30. It is a serially manufactured antenna, it has high quality and reliability. Important: each antenna produced for each specific order and personal needed. So when you place the order, let me know your desired central (transmitting).

Also usually we need about 5 days to produce the antenna. Install the supplied hardware exactly as shown in the photo. Colored marker on dipole indicate upward direction. Accordingly, the drainage holes at the end of the antenna should point downward. The antenna mast must be grounded. If you have any questions about the assembly and installation of the antenna, please contact me.
