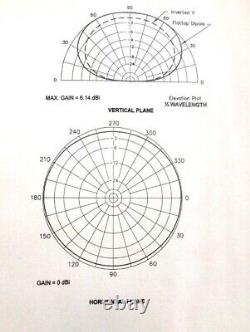

Ham Radio Antenna For 20/15/10 Electrically Equivalent to a half wave Dipole

Electrically Equivalent to a half wave Dipole. A compact tough design that's been time tested and trusted by radio operators for over 40 Years. Problems with HOA this may solve it! Size H x W x D - 4" x 32" x 30. Bandwidth - 350 Khz on 20 Meters, 450 Khz on 15 Meters, 1 Mhz on 10 Meters Impedance - 50-75 ohms.

Range - 14.000-14.350 Mhz, Entire 15 Meter Band, 28-30 Mhz. Power Input - 1000 watts PEP. Bandwidth is within 2:1 SWR. Wiring Harness Included for Multi-Band Orders. Antennas can be separated if desired.

Any questions feel free to contact. Difficulty setting it up, we're here to help you have a good experience being a owner/ operator of a isotron antenna. We can make a Antenna for any application you can think of.

Solve Virtually Any Restricted Space Problem. Easy, Quick, and Simple Installation.

Tunes & Performs Without Radials or Antenna Tuners. Handles Up to 1000 Watts PEP. Durable Construction, Can be Used in Extreme Weather Conditions. Excellent For Portable Operation - Emergencies, RV's, Field Day, Motels, Etc. Multi-Band Operation on One Feedline with Back-to-Back Mounting & NO Loss of Performance>. Can be mounted in ANY Position Without Loss of Performance. Maritime Operation - Uncluttered Setup, with Stainless-Steel Fasteners & Not Dependent Upon Grounding for Performance. SO-239 Connector on All Models.

---
