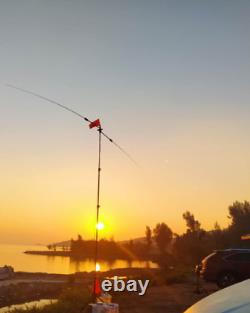

JPC-7 Portable Short Wave Antenna Multi-band DP Antenna Amateur Band HAM Antenna. The antenna is a mini portable antenna designed for mobile communications in the field. It can work at 2, 6, 10, 12, 15, 17, 20, 30, 40 meters, with a length of 34.5 cm after shrinking. Two oscillators spread out to 6.6 meters. Easy and fast to set up.

It can be completed in 5 minutes by one person. All you need is a support pole and feeder, and everything else is ready for you.

The coil bobbin and the base are made by die-casting, and they are handmade. It is made of nylon which features very high strength. Don't worry about damage. Aluminum tubes are sandblasted and oxidized to black, which is very beautiful and durable.

The aluminum parts in the connector base have been replaced with copper parts, which is stronger and more durable. A special black hand bag perfectly protects the antenna, making it convenient to carry. Antenna oscillator is: connector-two sections of aluminum tubes-induction coil-whip antenna. The position of the 40-meter and 20-meter bands is marked on the coil, and the position can only be changed for reference. The actual installation environment shall prevail.

Use an antenna analyzer to find the minimum SWR of each band. Frequency: can work in 8 bands (7-50M) at 40.30.20.17.15.12.10.6 meters. 1 x JPC Antenna SET. 1 x Connector Base (Material: Nylon). 2 x Multiband Coils (Material: Nylon).

4 x Black Alumina Tubes 19 x 320mm. 2 x 2.5M Stainless Steel Whip Antennas.

2 x Copper Connection Parts for Positive V Erection. 1 x Cloth Carry Bag. 1 x Aluminum Adapter for Tripod. Remarks: The use of this product requires some knowledge of amateur radio. Please pay attention when purchasing.
