The new antenna replaces the adjustment screws and plugs on the original jpc-7 and pac-12 with a sliding adjuster, making it easier to adjust the. Now, just slide the adjustment slider with your finger.
Reference data when using the slider: 14 mega slider is located 6 turns near the side of the rod antenna the gold mark 0; pulls the lever back about 20cm. 7 mega slider is located 4 turns near the aluminum tube side (silver mark), the lever is retracted back about 10cm. Note: Because the matching between the hook adjustment screw and the plastic nut is a little tight, gently clamp the screw with pliers before use, and screw.The plastic nut back and forth twice on the screw. The coil bobbin is made by die-cutting.
The material is nylon, non-ppr pipe is made by hand. The strength is very high. The coil is now wound with 1.0mm. 304 stainless steel wire, which has higher strength and overcomes the deformation of tinned copper wire.The weakness is that all the screws are made of. Stainless steel screws, and the vibrator aluminum tube is sandblasted and oxidized into black.
Note that it is not a simple aluminum rod and two screws. This is an aluminum tube. Even if it is erected horizontally, the sag is very high. Small, not as drooping as an aluminum rod is very serious. To black, and the custom 2.5 m stainless steel rod antenna is used for higher strength and the communication efficiency is greatly improved. Light weight, small size and easy to carry. Can work easily in multiple bands. Easy and fast to set up. It can be set up in 3 minutes by one person. Very suitable for field stand, business trip or balcony erection. It is made of non-manual car.The coil is wound with 1.0mm stainless steel wire. All screws are made of stainless steel. Aluminum tube blasted into black, the base is oxidized to black, very beautiful and graded. Customized 2.5 m stainless steel rod antenna.
Weight is about 1.4Kg. The length of the contraction is about 34.5cm, and the length of the erection is about 410cm. Frequency: can work in 8 bands of 40, 30, 20, 17, 15, 12, 10, 6 meters (7Mhz-50Mhz).
Standing Wave: 40m band SWR. Put the connection ring of the ground network directly on the screw of the ground anchor and screw it to the base, then connect base, 4-section aluminum. Tubes, load coil, and telescopic antenna in order. When adjusting standing wave, if there is an antenna analyzer, find the lowest point of standing wave first, and check whether the resonance frequency is high. If the resonance frequency is high, it means that the antenna is short.
You need to lengthen the antenna or increase the number of coils of the load coil. If the resonance frequency is low, shorten the antenna or reduce the number of turns of the coil. If there is no antenna analyzer, please use the standing wave. Knob, and look for the minimum point of standing wave in each frequency band. Check the level of resonance frequency, and then use the above method to adjust. When the ground net is in use, just tear 3-4 off.Adjusting the angle of the ground network can change the impedance of the antenna. Reference Data of Sliding Regulator. 7 mega slider moves to 4 turns near the side of the aluminum tube.

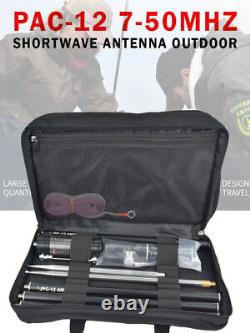

Telescopic rod retracts about 10cm, and the standing wave is 1.1-1.3. 14 mega slider is located 6 turns on the side of the rod antenna. The rod is retracted about 20cm, and the standing wave is 1.1-1.3. 21.4 when using 4 aluminum tube plus telescopic antenna 7-section + 10cm, standing wave 1.1-1.3. 29.6 using telescopic antenna only. All pulled out and retracted about half a section, standing wave 1.2. 1pc of Aluminum Alloy Base (anodized to black). 1pc of Multi-band Load Coil 40m - 10m; material: nylon. Note: Load coil is processed by opening mold instead of manual manufacturing. 1pc of Ground Anchor 10 x 240 mm (not plated to maintain good grounding). 4pcs of Alumina Tubes Black 19 x 320 mm (anode sandblasting oxidation). 1pc of 2.5 m Stainless Steel Telescopic Antenna (thickness can be customized). 1pc of 10-strand Ground Wire Cable (tear as needed when using; generally tear 3 strands). We will inform you via message. Please indicate your personal requirement such as colors, packages, value of declaration etc. Return item must be unused and in the same condition you received it, in original packaging. If you are not satisfied when you receive your item, Please contact me before you return it. If there is nothing wrong with the item, we will appreciate it and do the same for you. All questions will be replied within 24 working hours.
