Sigma Euro-comm Se-hf-360 Fibre Glass Vertical Antenna 80 To 6 Metres
Home to the original Sigma Stinger. Return to Sigma Euro-Comm Limited. Sigma EURO-COMM SE-HF-360 FIBRE GLASS VERTICAL ANTENNA 80 TO 6 METRES. Over 30 Years Experience - Est 1990. Born in the heart of Birmingham!
Want to see our Full Range. 2021 THE EU INTRODUCED NEW VAT RULES FOR THE IMPORT OF GOODS FROM OUTSIDE THE EU. WE ARE A UK BASED COMPANY. PLEASE ALSO NOTE THAT IF YOUR ANTENNA IS OVER 150 EUROS YOU WILL ALSO FACE A SMALL COURIER ADMINISTRATION CHARGE.

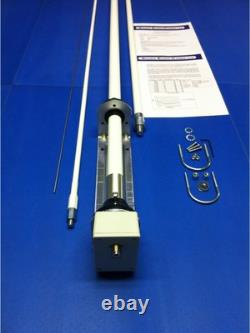

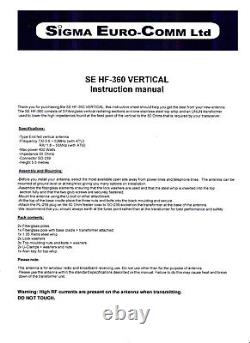

P LEASE NOTE THAT CARRIAGE COST IS BASED ON UK MAINLAND ONLY. ALSO, SOME SCOTTISH HIGHLAND POSTCODES ARE ALSO EXCLUDED. CUSTOMERS FROM ISLANDS AROUND THE WORLD E. BALAERICS, CANARIES, COUNTRIES NOT CLASSED AS AMERICAN MAINLAND, EXTREMELY REMOTE AREAS ETC. Sigma Euro-Comm SE-HF 360 Fibre Glass Vertical antenna. The Sigma Euro-Comm Ltd HF360 is an end fed vertical antenna, capable of allowing the user to work 80 meters through to 6 meters using an ATU. The antenna can be pole mounted at ground level or elevated depending on the user's personal requirements. The antenna is rated at 400W pep. The antenna comes with fixings and installation guide. How it works: The antenna is fed using 50 Ohm coax via a SO-239 socket at the base of the unit. A 6:1 UNUN transformer is located in an IP65 weather sealed box at the bottom of the bracket section of the fibre glass elements. The antenna comes in four parts, three. Fibreglass poles and one stainless steel tapered whip. The transformer reduces the impedance at the feed point to a more acceptable level making the antenna much more efficient and allowing proper and easy tuning via an external ATU and. Automatic ATU's found in most modern radios. The antenna can be grounded if the user experiences excessive local static noise, but as the UNUN is DC grounded: grounding will not affect the tuning ratios. The Highlighted bands in the chart below will require a manual ATU, the others an internal.1:3.1 (Manual ATU). Frequency TX / 3.5 - 52 MHz.
RX / 1.8 - 55 MHz. Length 5.5 meters or 18 Feet. Please use a good quality 50 Ohm coax, RG-213 or Mini 8 are probably the best choice. From humble beginnings making TV antennas in the garage, Terry spotted a gap in the CB market with most kit imported from America. During the'80s the market really took off and Paul joined his father, moving to their first premises and creating Sigma Euro-Comm Limited. Through listening to our customers requirements, we're constantly looking at how we can improve and innovate our CB offerings and now boast one of the most extensive range of CB antennas, supplying to both end customers and trade partners across the globe. Despite our growth, all our products are still made right here in our factory in the heart of Birmingham.... Just a much bigger site to the one we had back in 1990! These are some of the most common questions we get asked by our customers.How do I protect my antenna from the elements? We always recommend protecting any exposed areas of your antennas, such as the UNUN box, with tape or another waterproof material.
The sea air and extreme cold will over time have a detrimental affect on exposed areas. Do I need an ATU for my antenna? Many of our antennas will perform much better with the use of an ATU. We do have antennas that will need an ATU such as the X-80, HF-360 and HF-360XP.
How do I mount my antenna? Vertical Antennas: Work best when mounted on a short metal pole at ground level. You can mount 10 - 20 feet up but the higher you mount, the further away the antenna moves from it's natural earth.CB Mobile Antennas: Our Stinger antennas will require a mount depending on how you wish to mount it. All items prior to despatch will be thoroughly inspected and a return will only be accepted if the item is received in the same condition. All tracking information will be provided once your order has been dispatched. You can find this information in your account.
Please note all orders received after 1pm on Fridays will be dispatched on the following Monday. Welcome to Sigma Euro-Comm Limited. We pride ourselves on customer service and producing high quality products; with Paul still overseeing the production of all products onsite at our Birmingham factory. Our reputation is key to our success and we're grateful to have so many loyal customers that return to us time and time again.
Business name: Sigma Euro-Comm Ltd. Member since: 19 Nov, 2010. PLEASE NOTE THAT CARRIAGE COST IS BASED ON UK MAINLAND ONLY. G CARIBBEAN, BALAERICS, CANARIES, COUNTRIES NOT CLASSED AS AMERICAN MAINLAND, EXTREMELY REMOTE AREAS ETC. The antenna can be pole mounted at ground level or elevated depending on the user's personal requir.
